 Handheld tensiometer for spot measurement  : TEN-XP-989

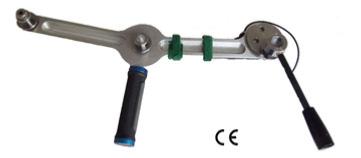

Handheld tensiometer for spot measurement : TEN-XP-989

The handheld tensiometer TEN-XP-989 is comonly used on spot for checking the force value in static line, cable, rope .
In some specific cases we can analyse and manufacture systems for tension stress measurement in metallic rods.
The  cable diameter is in the range of 6 to 12 mm but we also design this model of tensiometer for inquiries out of this range.
The system is connected to a handheld display and can convert in different units :Kg, daN, kN, tons...
For  work at height we can supply miniature display embedded on the tensiometer or connect the sensor to a wireless emitter :BLE, 2.4GHz .

  • Tensiometer for measurement on spot for static line .
  • Force range in cable: .55KN to 20KN ... we design for higher capacity
  • Cable diameter : from 6 mm to 12 mm
  • Sensivity : 1,50 mV/V
  • Standard accuracy : 2.50%
  • Material : aluminum in majority for weight reduction
  • Protection index :IP66
  • Option:  miniature display embedded on the tensiometer or connect the sensor to a wireless emitter :BLE, 2.4GHz .
