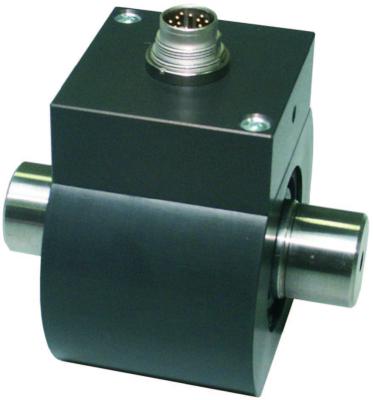

Compact rotary torque transducer : CAP-DRBK

Compact rotary torque transducer : CAP-DRBK

The contactless rotary torque transducer CAP-DRBK allows torque measurement with high speed.
This sensor is designed for economical technical solution. Its lenght allows an easy integration in most of engineering cases.
  • Economical rotary torque transducer version
  • Range measurement : 0,5N.m to 1000 N.m
  • High level output signal : 0 +/-5.00V and 10+/-8mA
  • Accuracy: 0.50%.
  • Supply voltage : 11,5 to 30,0 Vdc
  • Revolution speed : from 9.000rpm to 20.000rpm depending inertia and model
  • Option: speed measurement on DRBK model
