Compact rotary torque transducer : CRB-070

Compact rotary torque transducer : CRB-070

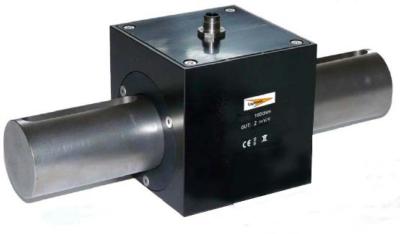

The rotary torque transducer CRB-070 allows torque measurement with speed of 3800 rpm and non-amplified siignal of 2.0mV/V.
This sensor is designed for economical technical solution and lifetime testing on test benches.
  • Economical rotary torque transducer version
  • Range measurement : 10N.m to 1000 N.m
  • Sensitivity : 2.0mV/V
  • Accuracy: 0.35%.
  • Supply voltage :1.0 to 14.0Vdc
  • Revolution speed : 3.800 tr/min
  • Option: 0+/-10V, 2,50+/-2,5V, 5.00+/-5.0V, 12mA+/-8mA, USB output digital
