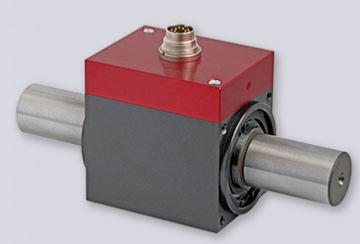

High accuracy rotary torque transducer : CAP-DRVL

High accuracy rotary torque transducer : CAP-DRVL

The contactless rotary torque transducer CAP-DRVL allows torque measurement with high capacity and high accuracy.
This sensor has an electronic with 2 types of output : voltage and frequency with good reliability .
  • High accuracy rotary torque transducer version
  • Range measurement : 002N.m to 20.000 N.m
  • High level output signal : 0 +/-10.00V and 10KHz+/-5KHz
  • Accuracy: 0.10%.
  • Supply voltage :10,0 to 28,8 Vdc
  • Revolution speed : from 4.000rpm to 37.000rpm depending inertia and model
  • Options: speed and angle measurement / output linearity =0,05%
