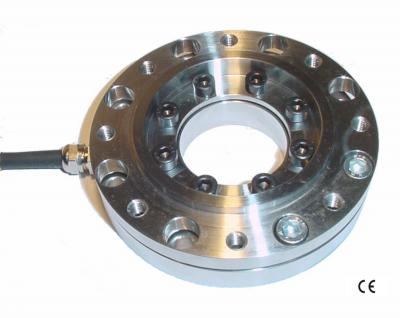

High accuracy and capacity torque sensor  : CCF-030

High accuracy and capacity torque sensor : CCF-030

The low profile torque sensor CCF-030 was designed for an easy integration in its mechanical environment .
This transducer can be mounted on one side only, this is fair in most of situation as the assembly lenght is low.
We propose the model in many ranges of measurement : from 100N.m to 7500 N.m. For higher range please consult our Technical Design Office.
  • Low profile and high capacity reaction torque transducer
  • Measurement range : 0-100N.m to 0-7500N.m
  • Sensivity :1.5 mV/V .
  • Accuracy: 0.35%.
  • Matériau : stainless steel
  • Protection index : IP55
  • Optional high level output : 0+/-10V, 2,50+/-2,5V, 5.00+/-5.0V, 12mA+/-8mA, USB output digital
