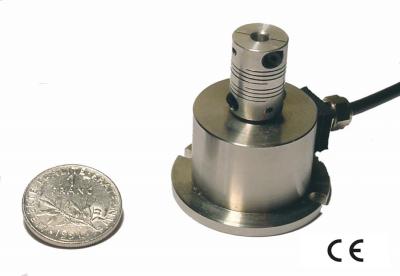

Miniature static torque transducer : CCM-050

Miniature static torque transducer : CCM-050

The miniature torque sensor CCM-050 was designed for an integration on small station in mechanical laboratories .
The specific design gives a good accuracy in torque measurement and a perfect ability for integration in small benches.
We propose the model in different ranges of measurement wiyh very low torques  : from 0,025N.m to 1.0 N.m. For higher range please consult our Technical Design Office.
  • Miniature reaction torque transducer with very low torque measurement capacity
  • Measurement range : 0-0,25N.m to 0-1.0N.m
  • Sensivity 1,5 mV/V v.s. capacity
  • Accuracy 0.30%.
  • Matériau : stainless steel for the sensor material and aluminum for housing
  • Protection index : Ip65
  • Optional high level output : 0+/-10V, 2,50+/-2,5V, 5.00+/-5.0V, 12mA+/-8mA, USB output digital,graphic output on tablet PC.
