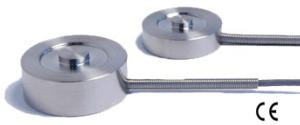

Compression Load button : CFB-080

Compression Load button : CFB-080

The button load cell CFB-080 has been developed  and improved for better integration on weighing platform or force monitoring in a compression load measurement process with narrow height space.
The force sensor is used for heavy load measurement and gravity center determination till 250KN.

  • Button force transducer for compression measurement with low thickness.
  • Diameter : 25 to 75 mm
  • Force range : 100daN to 250KN
  • Sensivity from 1,50 to 2 mV/V according to scale output.
  • Standard accuracy 0.55%
  • Material : stainless steel for the load cell / aluminum for washer
  • Protection index : IP64
  • Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
