Compression Load cell : CFB-085

Compression Load cell : CFB-085

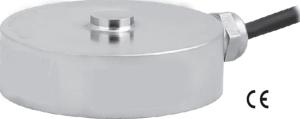

The flat load cell CFB-085 has been developed  and improved for better integration on weighing platform or force monitoring in a compression load measurement process with narrow height space.
The force sensor is used for heavy load measurement and gravity center determination up to 300KN.

  • Button force transducer for compression measurement with low thickness.
  • Diameter : 25 to 75 mm
  • Force range : 100daN to 250KN
  • Sensivity from 1,50 to 2 mV/V according to scale output.
  • Standard accuracy 0.35%
  • Material : stainless steel
  • Protection index : IP67
  • Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
