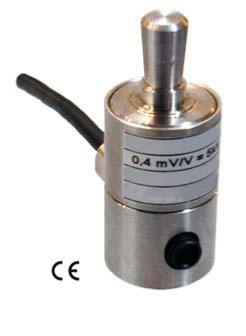

Force transducer in compression for press : CFC-011

Force transducer in compression for press : CFC-011

The load cell  CFC-011 has been developed  ans improved for better integration on press machines, set up during sheet metal cutting and stamping operation.
This transducer has a very high safety coefficient nearly 1000% and is prevently protected against high overload.
  • Force transducer for measurement in compression.
  • Force range : 500daN
  • Sensivity from : 0,4 mV/V
  • Standard accuracy: 2.20%
  • Material : stainless steel for the load cell and aluminum for strain gauges protection
  • Protection index :IP54
  • Option: high level output amplifier-conditionner miniature in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
