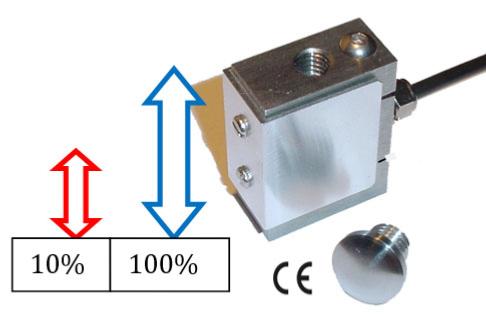

Force transducer with double range of measurement :CDEM-051

Force transducer with double range of measurement :CDEM-051

The CDEM-051 force transducer has been developed to fulfill requirement of accuracy and double range of measurement.
The minimal scale proposed from 0 to 10% of the full scale output , the great scale is accurate from 10% to 100% of the full scale output.
In order to protect the lowest measuring range sensor,adjustable stops or cutouts by electro-erosion ensure the safety configuration while using the maximum load range.
  • Load cell based on strain gauges equipment for force measurement in tension-compression.
  • Force range : +/-1-10 daN ....+/-100-1000daN
  • Sensivity from 1,25 to 2 mV/V according to scale output.
  • Standard accuracy 0.20%
  • Material : stainless steel for the load cell / aluminum for dishes
  • Protection index :IP52
  • Option: on 2 channels ,high level output amplifier-conditionner miniature in a small waterproof enclosure  : 0+/-10V, 2,5+/-2,5V, 5.00V+/-5V, 12mA+/-8mA
