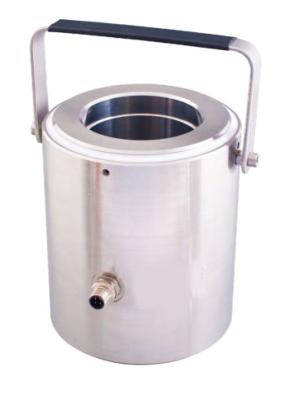

Heavy load capacity force sensor : CFC-HLO

Heavy load capacity force sensor : CFC-HLO

The load cell called CFC-HLO is done to to measure tension in cable or rods with great diameter.
The range of the load we can reach : from 100 KN to 4000 KN
It can measure force with variation in cable or rod force and has a great reliability with cycling profile in harsh environment.
We propose a standard  accuracy class in compression loading case of  2.
  • Load cell for high force measurement in compression.
  • Force range : 1000 kN to 4000 kN
  • Sensivity 1,50 to 2.0 mV/V depending the scale output .
  • Standard accuracy  2.0%
  • Material : stainless steel
  • Protection index :IP65
  • Option: high level output amplifier-conditionner miniature in a small waterproof enclosure integrated in the sensor itself  : 0-10V, 0-5.0V, 4-20mA,direct USB
