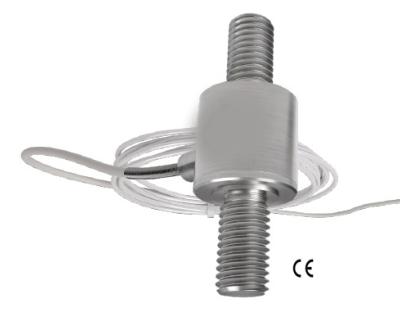

Miniature force transducer CFTC-025

Miniature force transducer CFTC-025

The miniature load cell called CFTC-025 find major integration on test benches in fatigue life testing or force monitoring in a load measurement process.
The sensor is protected by aluminum cap and polymer protection allows to reach ,good Protection index, a high accuracy voltage output measurement .

  • Miniature force transducer for measurement in tension-compression.
  • Force range : +/- 0-5kN to +/- 0-50 kN
  • Sensivity from 2,00 mV/V.
  • Standard accuracy 0.45%.
  • Material : stainless steel for the load cell and cap
  • Protection index :IP65
  • Option: high level output amplifier-conditionner miniature  : 0+/-10V, 2,5+/-2,5V, 5.00V+/-5V, 12mA+/-8mA
