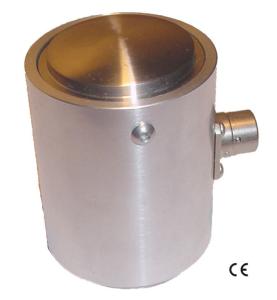

High capacity force transducer in compression : CFC-010

High capacity force transducer in compression : CFC-010

The load cell called CFC-010 has been developed  ans improved for better integration on weighing platform or force monitoring in a load measurement process.
This transducer is generally used in heavy duty crane activity.
The design hidden by aluminum cap and polymer protection allows to reach a high accuracy voltage output measurement and is weakly-sensitive to transverse forces.

  • Force transducer for measurement in compression.
  • Force range : 10KN to 0-1500KN
  • Sensivity from 1,50 to 2 mV/V according to scale output.
  • Standard accuracy 0.50%
  • Material : stainless steel for the load cell / aluminum for cap
  • Protection index :IP55 ....IP65 (reinforced waterproofness).
  • Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
