Strain gage full bridge simulator

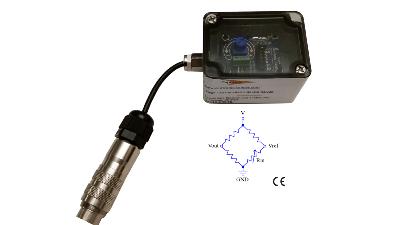

Bridge strain gauge simulator : SIM-PDJ
Set up of the differential output voltage : dip switches et potentiometer
Supply voltage : de 1.00Vdc à 10.00Vdc.


For simulation of the sensor, there is 6 ranges of  sensitivity
selection by DIP SWITCHES and potentiometer :


Niveau/Level

1

0.5mV/V

2

1mV/V

3

2mV/V

4

5mV/V

5

10 mV/V

6

50mV/V

Precision : 0,025%
