Customized load pin sensorCAPTRONIC designs and produces load pin for the measurement of force whose resulting vector is perpendicular to the theoretical axis of the sensor.
A complete study is done before the design of such a foce transducer . Our expertise makes it possible to define an optimal product, here below a centrally loaded load pin axis with respect to the two reaction forces.
There are other types of loading and soon we will provide a guide to guide a product definition.
The type of loading is important for the definition of the proposed product:
- Lifting activity
- Dynamic force with alternating component
- Static force

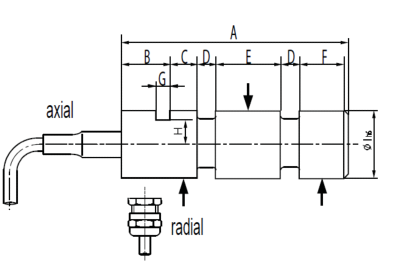

Below the representation of a centrally loaded load pin axis:
 This table is mandatory to be fullfilled before the assessment of feasability:
Accuracy mentionned in % of F.S.O.?
Full capacity of the load pin axis ,our proposition range is 100daN to 1500KN. |
